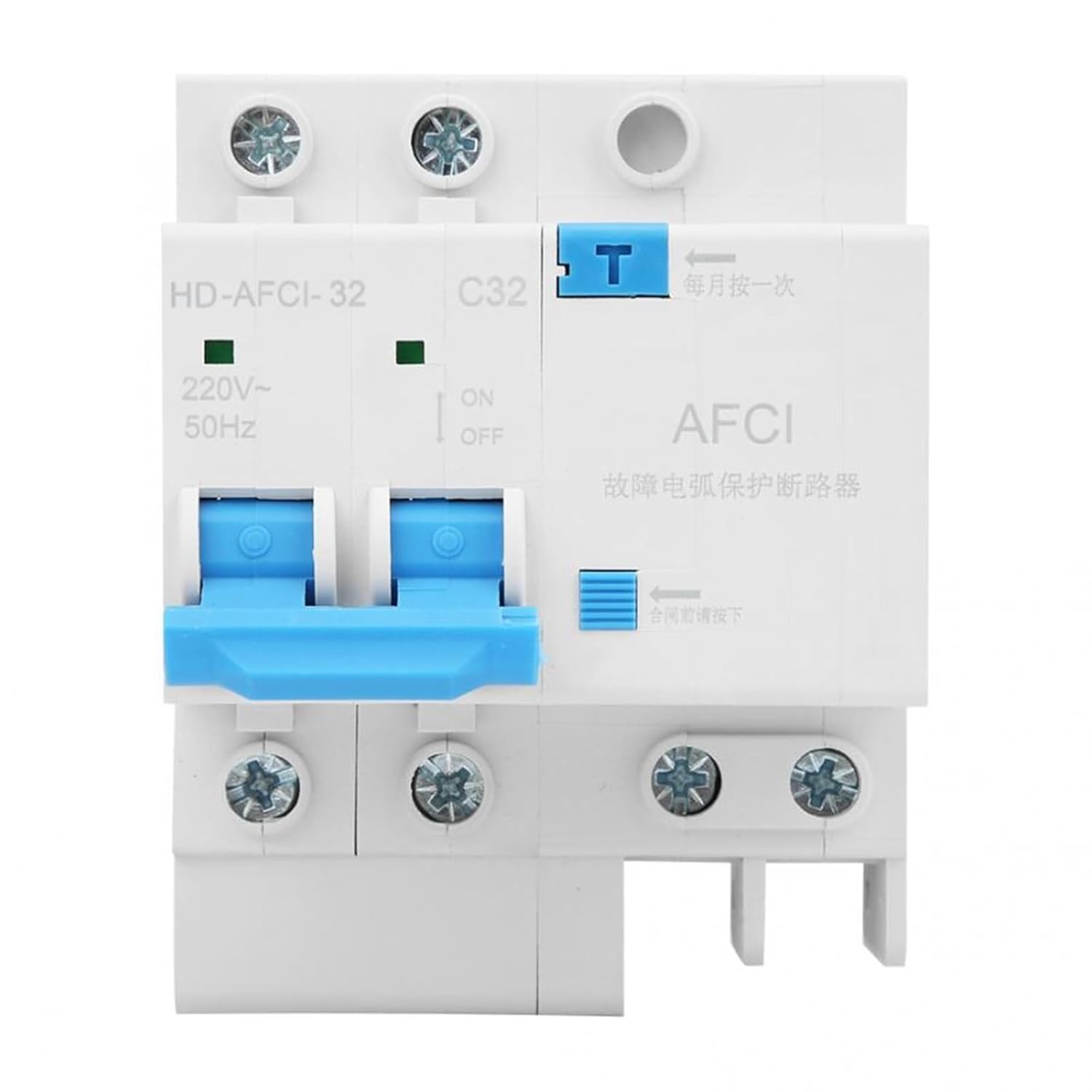

2P Arc Electric Leakage Fault Circuit Breaker Miniature Household Current Limiting Electric Leakage Protector 32A 63A (Size : 32A)

Circuit Breakers2P Arc Fault Circuit Breaker Miniature Household Current Limiting Electric Leakage Protector 32A 63AFeature: 1. Fault arc protection circuit breaker uses electronic technology to identify arc state. 2. Fault arc detection is a key part of arc fault protection. 3. Working with the characteristics of light, heat, sound and electromagnetic of arc discharge. 4. High degree of protection, suitable for changing environments. 5. Suitable for installation in places where there is no significant vibration or shock. 6. Simple installation, DIN standard 35 rail mounting. Specification: Condition: Item Type: Arc Fault Circuit BreakerNumber Of Poles: 2PRated Frequency F (Hz): 50Rated Operating Voltage Ue (VAC): 230Rated Current In(A): 32A, 63A (optional)Rated Short-Circuit Breaking Capacity Icn(KA): 6 Characteristics: C, DMinimum String Arc And Parallel Arc Current (A): String Arc: 5; Parallel Arc: 75Electrostatic Discharge Immunity (KA): Discharge > 8; Contact Discharge > 6Protection Level: IP20Wiring Capacity (mm2;): 1-25 Operating Environment (°C): -25~+55Resistance To Heat And Humidity: 2 TypesAltitude (M): 2000Pollution Degree: 2Installation Environment: No Significant Vibration and ImpactInstallation Category: Level IIIInstallation Method: DIN Standard 35 Rail The main arc detection and fault identification methods:1. According to the characteristics of the arc waveform;2. According to the high frequency energy mutation of the arc;3. Using high frequency wavelet transform;4. Using a Fourier transform;5. Using time-frequency analysis;6. Use high frequency signal comparison;7. Use arc wavelength switching. Package List: 1 x Arc Protector
