| Management number | 219067394 | Release Date | 2026/05/03 | List Price | $5.20 | Model Number | 219067394 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
EPLZON Carbide Rotary Burr Set 🔘Specifications: 🔸Data: Head Dia.: 6mm. 🔹Head L.: 5 to 12mm. 🔸Head Spiral Flutes Qty.: 14. 🔹Head Material: Tungsten Carbide. 🔸Head Hardness: HRA90. 🔹Shank Dia.: 3mm. 🔸Shank L.: 38mm. 🔹Shank Material: 40Cr. 🔸Overall L.: 42 to 51mm. 🔹Max Rotation Speed: 70000RPM. 🔸Cut Style: Double Cut 🔹Direction of Rotation: Right Hand/Clockwise 🔸Feed Direction: Generally counter-rotationally or with a swinging motion. Direction of rotation to get fine finish. 🔹Optimal Drive Tool: Straight, Angle Die Grinder, Robot. 🔸Average Drive Tool: Drill, Drill Press. 🔹Drive Type: Air or Electric Rotary Tool. 🔸Optimal Fix Type: 3mm or 1/8"(3.175mm) Collect and Nut 🔹Average Fix Type: 3-jaws Chuck. ‼️NOTE: 1.Always wear ear, eye, face protection and protective safety gloves. 2.Generally, for rough work, move the burrs across the workpiece counter-rotationally. 3.Pass the tool over the workpiece in the direction of rotation to achieve fine finishes. 4.Min Clamping depth is 2/3 of the shank, if you have to clamp less, pls low speed. 5.If rough running, strong vibrations and increased flying sparks, pls use a new one. 6.Do not apply too much pressure, Let the speed do the work. Smaller burrs require faster speeds. 7.Soft materials, such as aluminum, use a grinding oil to reduce debris clogging. Grind glass, use water as lubricant. 8.Elongate holes, grip tool firmly with two hands and use a swinging motion, which prevents chatter, result in a safer cut. 9. Avoid impact loads, otherwise parts teeth will break off, shank will bend. Do not sink the burr for more than 1/3 of its periphery. 10.Recommendation for drives: shank 1/8" (75 to 300W), shank 1/4" (from 300W), for coarse cuts, 500W+ advantageous. ✅Package include: 1*10pcs Carbide Rotary Burr Set
| UPC | 791162828235 |
|---|---|
| Color | Silver |
| Brand Name | EPLZON |
| Style Name | Pencil |
| Unit Count | 1.0 Count |
| Item Weight | 0.07 Kilograms |
| Manufacturer | EPLZON |
| Model Number | EP-DKGJ-10PCS |
| Power Source | Corded Electric |
| Item Type Name | EP-DKGJ-10PCS |
| Included Components | 10pcs Carbide Rotary Burrs |
| Manufacturer Part Number | EP-DKGJ-10PCS |
| Maximum Rotational Speed | 70000 RPM |

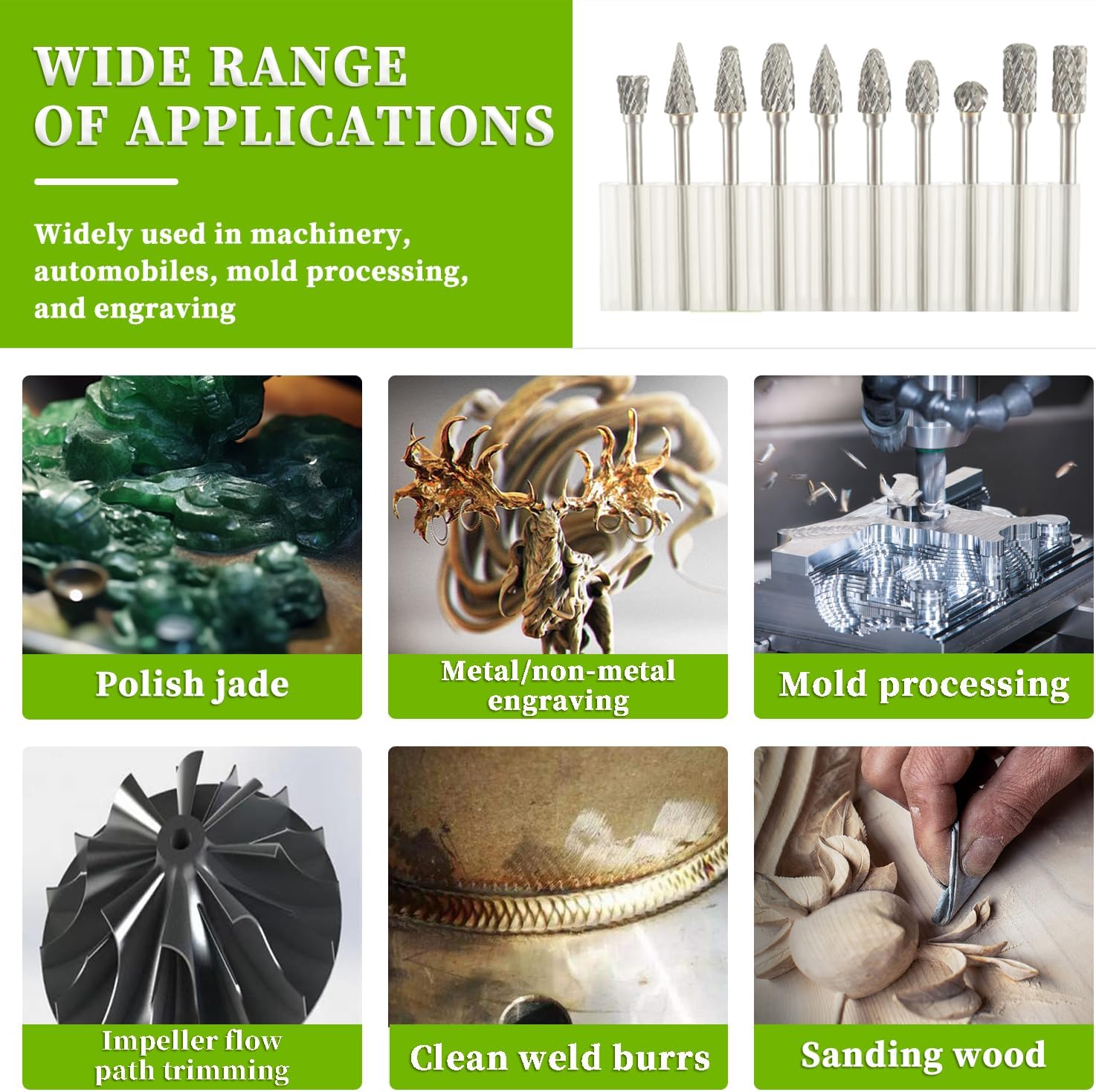

| Recommended Uses For Product | Carving, Polishing, Chamfering, Slotting, Reaming, Hollowing, Engraving, Cutting, Grinding, Drilling, Cleaning, Scraping, Shaping |
| Other Special Features of the Product | Multi Use |
